airMAX AC Technology for up to 500+ Mbps throughput.

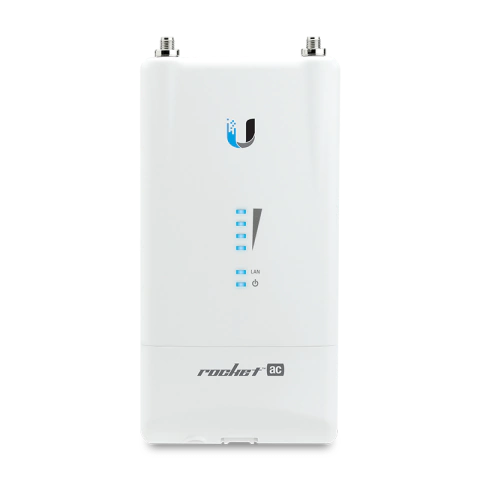

Ubiquiti has designed the first airMAX® ac radios for high performance and ease of installation. You have the freedom to deploy the Rocket® ac anywhere in the world, and it allows for a high degree of flexibility in configuring channel bandwidths (subject to local country regulations). Pair the Rocket5ac Lite with airMAX ac antennas for optimal performance:
PtP backhaul Rocket5ac Lite with the RocketDish™ ac
PtMP links Rocket5ac Lite with the airMAX ac Sector
Features:
5 GHz Frequency Band
Gigabit Ethernet
Passive Power over Ethernet (PoE)
Output Power
Plug and Play Integration
Mechanical
Dimensions 162 x 84 x 37 mm (6.4 x 3.3 x 1.5")
Weight 250 g (8.82 oz)
Enclosure material UV-stabilized plastic
Hardware
Networking interface (1) 10/100/1000 MbE RJ45 port
Power method Passive PoE (pairs 4, 5+; 7, 8 return)
Power supply 24V, 0.5A Gigabit PoE adapter (Included)
Max. power consumption 8.5W
ESD/EMP protection Air/contact ± 24kV
RF connectors (2) RP-SMA (waterproof)
LEDs Power, LAN, (4) signal strength
Shock and vibration ETSI300-019-1.4
Operating temperature -40 to 80° C (-40 to 176° F)
Operating humidity 5 to 95% noncondensing
Certifications CE, FCC, IC
